一、决策树是什么？—— 通俗易懂的核心概念

决策树（Decision Tree）是机器学习中监督学习算法的经典代表，因其逻辑类似人类决策过程而得名。想象你判断 “是否出门野餐”：先看 “是否下雨”，再看 “温度是否适宜”，最后看 “有无同伴”—— 这种层层判断的逻辑链，就是决策树的核心思想。

在机器学习中，决策树的结构包含三个关键部分：

根节点：决策的起点（如 “是否下雨”），对应数据集中的特征

内部节点：中间判断条件（如 “温度是否适宜”）

叶节点：最终决策结果（如 “出门野餐” 或 “不出门”）

分支：每个判断的可能结果（是 / 否、数值区间等）

决策树的优势的是可解释性极强（能清晰看到决策过程）、无需特征归一化、对异常值不敏感，缺点是容易过拟合（后续会讲优化方法）。

二、决策树如何 “做决策”？—— 核心算法原理

决策树的关键是如何选择最优特征作为节点，本质是通过 “纯度提升” 实现分类 / 回归。常用的特征选择指标有 3 种：

1. 信息增益（ID3 算法）

基于 “信息熵”（衡量数据混乱程度），信息增益 = 父节点熵 - 子节点加权熵。信息增益越大，说明该特征分类效果越好。

信息熵公式（二分类问题）：

是类别 k 在数据集 D 中的占比。

2. 信息增益比（C4.5 算法）

解决 ID3 算法偏好取值多的特征（如 “用户 ID”）的问题，引入 “特征固有值” 进行归一化：

信息增益比 = 信息增益 / 特征固有值

3. 基尼系数（CART 算法）

衡量数据集的不纯度，基尼系数越小，数据纯度越高：

CART 树是二叉树（每个节点仅分两个分支），可同时用于分类和回归（回归时用平方误差最小化）。

三、决策树的优缺点分析

优点：

无需数据预处理：对数据标准化要求较低

处理混合数据类型：能同时处理数值型和类别型特征

非参数方法：不对数据分布做假设

缺点：
过拟合风险：随着层数增加，容易过度拟合训练数据

不稳定性：数据微小变化可能导致完全不同的树结构

偏向于多值属性：信息增益倾向于选择有更多取值的属性

四、决策树的构建与终止条件

构建过程：
选择最佳划分属性

根据属性值划分数据集

对每个子集递归执行上述过程

终止条件：
当前节点所有样本属于同一类别

没有剩余属性可用于进一步划分

当前节点样本集为空

达到预设的树深度或节点最小样本数

五、属性划分方法

1. 信息增益（ID3算法）
选择使信息增益最大的属性进行划分

信息增益 = 父节点熵 - 加权子节点熵之和

倾向于选择多值属性，可能导致过拟合

2. 增益率（C4.5算法）
对信息增益进行规范化，克服多值属性偏好

增益率 = 信息增益 / 分裂信息

3. 基尼指数（CART算法）
衡量数据不纯度，选择使基尼指数下降最快的属性

基尼指数越小，数据纯度越高

六、剪枝策略：防止过拟合

1. 预剪枝（Pre-pruning）
原理：在树构建过程中提前停止生长

方法：

设置最大深度

设置节点最小样本数

通过验证集评估是否继续划分

优点：

降低过拟合风险

减少训练和测试时间

缺点：

可能欠拟合

难以确定最优停止条件

2. 后剪枝（Post-pruning）
原理：先构建完整树，再自底向上剪枝

方法：

用验证集评估子树替换为叶节点的影响

若精度不下降则剪枝

优点：

保留更多分支可能，欠拟合风险低

泛化能力通常优于预剪枝

缺点：

计算成本较高

过拟合风险仍存在

七、决策树学习的目标

决策树学习的核心目标是获得泛化能力强的模型，即在未见数据上表现良好的决策树。为实现这一目标，需要：

选择合适的划分准则

设置合理的停止条件

应用适当的剪枝策略

可能使用集成方法（如随机森林）进一步提升性能

八、实战演练

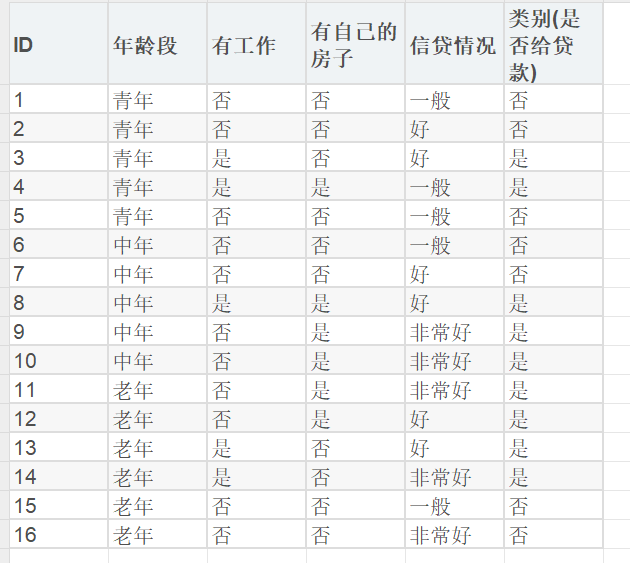

这是一个关于是否可以成功申请信贷的表格，接下来同学们，请根据表格内容编写代码

1.构建树：

    def _build_tree(self, X, y, depth=0):
        n_samples, n_features = X.shape
        n_classes = len(np.unique(y))

        # 终止条件
        if (self.max_depth is not None and depth >= self.max_depth) or \
                n_classes == 1 or \
                n_samples < self.min_samples_split:
            leaf_value = self._compute_leaf_value(y)
            return TreeNode(value=leaf_value)

        best_feature, best_threshold = self._find_best_split(X, y, n_features)

        if best_feature is None:
            return TreeNode(value=self._compute_leaf_value(y))

        left_idxs = X[:, best_feature] <= best_threshold
        right_idxs = ~left_idxs
        left = self._build_tree(X[left_idxs], y[left_idxs], depth + 1)
        right = self._build_tree(X[right_idxs], y[right_idxs], depth + 1)

        return TreeNode(feature_idx=best_feature, threshold=best_threshold, left=left, right=right)

2.计算熵

def _entropy(self, y):
    counts = np.bincount(y)
    ps = counts / len(y)
    return -np.sum([p * np.log2(p) for p in ps if p > 0])

3.寻找最佳划分

def _find_best_split(self, X, y, n_features):
    best_gain = -1
    best_feature = None
    best_threshold = None

    for feature_idx in range(n_features):
        thresholds = np.unique(X[:, feature_idx])
        for threshold in thresholds:
            gain = self._information_gain(X, y, feature_idx, threshold)
            if gain > best_gain:
                best_gain = gain
                best_feature = feature_idx
                best_threshold = threshold

    return best_feature, best_threshold

4.信息增益

公式：Gain(D,A)=H(D)−Σ(∣Dv∣/∣D∣∗H(Dv))

def _information_gain(self, X, y, feature_idx, threshold):
    parent_entropy = self._entropy(y)

    left_idxs = X[:, feature_idx] <= threshold
    right_idxs = ~left_idxs

    if np.sum(left_idxs) == 0 or np.sum(right_idxs) == 0:
        return 0

    n = len(y)
    n_left, n_right = np.sum(left_idxs), np.sum(right_idxs)
    e_left = self._entropy(y[left_idxs])
    e_right = self._entropy(y[right_idxs])

    child_entropy = (n_left / n) * e_left + (n_right / n) * e_right
    information_gain = parent_entropy - child_entropy
    return information_gain

5.C4.5增益率

公式：增益率 = 信息增益 / 划分信息

def _split_info(self, X, feature_idx, threshold):
    left_idxs = X[:, feature_idx] <= threshold
    right_idxs = ~left_idxs

    n = len(X)
    n_left, n_right = np.sum(left_idxs), np.sum(right_idxs)

    if n_left == 0 or n_right == 0:
        return 0

    p_left = n_left / n
    p_right = n_right / n

    return -p_left * np.log2(p_left) - p_right * np.log2(p_right)

def _information_gain_ratio(self, X, y, feature_idx, threshold):
    information_gain = self._information_gain(X, y, feature_idx, threshold)
    split_information = self._split_info(X, feature_idx, threshold)

    if split_information == 0:
        return 0

    return information_gain / split_information

6.结果

import numpy as np
from collections import Counter


def load_data(file_path):
    data = []
    with open(file_path, 'r') as f:
        for line in f:
            items = line.strip().split(',')
            items = [int(item) for item in items]
            data.append(items)
    return np.array(data)


class TreeNode:
    def __init__(self, feature_idx=None, threshold=None, value=None, left=None, right=None):
        self.feature_idx = feature_idx
        self.threshold = threshold
        self.value = value
        self.left = left
        self.right = right

    def is_leaf(self):
        return self.value is not None


class DecisionTree:
    def __init__(self, max_depth=None, min_samples_split=2):
        self.max_depth = max_depth
        self.min_samples_split = min_samples_split
        self.root = None

    def fit(self, X, y):
        self.root = self._build_tree(X, y)

    def predict(self, X):
        return np.array([self._traverse_tree(x, self.root) for x in X])

    def _traverse_tree(self, x, node):
        if node.is_leaf():
            return node.value
        if x[node.feature_idx] <= node.threshold:
            return self._traverse_tree(x, node.left)
        else:
            return self._traverse_tree(x, node.right)

    def _build_tree(self, X, y, depth=0):
        n_samples, n_features = X.shape
        n_classes = len(np.unique(y))

        # 终止条件
        if (self.max_depth is not None and depth >= self.max_depth) or \
                n_classes == 1 or \
                n_samples < self.min_samples_split:
            leaf_value = self._compute_leaf_value(y)
            return TreeNode(value=leaf_value)

        best_feature, best_threshold = self._find_best_split(X, y, n_features)

        if best_feature is None:
            return TreeNode(value=self._compute_leaf_value(y))

        left_idxs = X[:, best_feature] <= best_threshold
        right_idxs = ~left_idxs
        left = self._build_tree(X[left_idxs], y[left_idxs], depth + 1)
        right = self._build_tree(X[right_idxs], y[right_idxs], depth + 1)

        return TreeNode(feature_idx=best_feature, threshold=best_threshold, left=left, right=right)

    def _find_best_split(self, X, y, n_features):
        pass

    def _compute_leaf_value(self, y):
        pass


class ID3DecisionTree(DecisionTree):
    def __init__(self, max_depth=None, min_samples_split=2):
        super().__init__(max_depth, min_samples_split)

    def _entropy(self, y):
        counts = np.bincount(y)
        ps = counts / len(y)
        return -np.sum([p * np.log2(p) for p in ps if p > 0])

    def _information_gain(self, X, y, feature_idx, threshold):
        parent_entropy = self._entropy(y)

        left_idxs = X[:, feature_idx] <= threshold
        right_idxs = ~left_idxs

        if np.sum(left_idxs) == 0 or np.sum(right_idxs) == 0:
            return 0

        n = len(y)
        n_left, n_right = np.sum(left_idxs), np.sum(right_idxs)
        e_left = self._entropy(y[left_idxs])
        e_right = self._entropy(y[right_idxs])

        child_entropy = (n_left / n) * e_left + (n_right / n) * e_right
        information_gain = parent_entropy - child_entropy
        return information_gain

    def _find_best_split(self, X, y, n_features):
        best_gain = -1
        best_feature = None
        best_threshold = None

        for feature_idx in range(n_features):
            thresholds = np.unique(X[:, feature_idx])
            for threshold in thresholds:
                gain = self._information_gain(X, y, feature_idx, threshold)
                if gain > best_gain:
                    best_gain = gain
                    best_feature = feature_idx
                    best_threshold = threshold

        return best_feature, best_threshold

    def _compute_leaf_value(self, y):
        return Counter(y).most_common(1)[0][0]


class C45DecisionTree(DecisionTree):
    def __init__(self, max_depth=None, min_samples_split=2):
        super().__init__(max_depth, min_samples_split)

    def _entropy(self, y):
        counts = np.bincount(y)
        ps = counts / len(y)
        return -np.sum([p * np.log2(p) for p in ps if p > 0])

    def _split_info(self, X, feature_idx, threshold):
        left_idxs = X[:, feature_idx] <= threshold
        right_idxs = ~left_idxs

        n = len(X)
        n_left, n_right = np.sum(left_idxs), np.sum(right_idxs)

        if n_left == 0 or n_right == 0:
            return 0

        p_left = n_left / n
        p_right = n_right / n

        return -p_left * np.log2(p_left) - p_right * np.log2(p_right)

    def _information_gain_ratio(self, X, y, feature_idx, threshold):
        parent_entropy = self._entropy(y)

        left_idxs = X[:, feature_idx] <= threshold
        right_idxs = ~left_idxs

        if np.sum(left_idxs) == 0 or np.sum(right_idxs) == 0:
            return 0

        n = len(y)
        n_left, n_right = np.sum(left_idxs), np.sum(right_idxs)
        e_left = self._entropy(y[left_idxs])
        e_right = self._entropy(y[right_idxs])

        child_entropy = (n_left / n) * e_left + (n_right / n) * e_right
        information_gain = parent_entropy - child_entropy

        split_information = self._split_info(X, feature_idx, threshold)

        if split_information == 0:
            return 0

        gain_ratio = information_gain / split_information
        return gain_ratio

    def _find_best_split(self, X, y, n_features):
        best_gain_ratio = -1
        best_feature = None
        best_threshold = None

        for feature_idx in range(n_features):
            thresholds = np.unique(X[:, feature_idx])
            for threshold in thresholds:
                gain_ratio = self._information_gain_ratio(X, y, feature_idx, threshold)
                if gain_ratio > best_gain_ratio:
                    best_gain_ratio = gain_ratio
                    best_feature = feature_idx
                    best_threshold = threshold

        return best_feature, best_threshold

    def _compute_leaf_value(self, y):
        return Counter(y).most_common(1)[0][0]


def evaluate_model(model, X_train, y_train, X_test, y_test):
    model.fit(X_train, y_train)

    test_pred = model.predict(X_test)

    test_acc = np.sum(test_pred == y_test) / len(y_test)

    print(f"测试集准确率: {test_acc:.4f}")

    return test_acc


def main():
    train_path = "C:/Users/Administrator/Downloads/dataset.txt"
    test_path = "C:/Users/Administrator/Downloads/testset.txt"

    train_data = load_data(train_path)
    test_data = load_data(test_path)

    # 分割特征和标签
    X_train = train_data[:, :-1]
    y_train = train_data[:, -1]
    X_test = test_data[:, :-1]
    y_test = test_data[:, -1]

    print("\n使用ID3决策树(信息增益):")
    id3_tree = ID3DecisionTree(max_depth=5)
    id3_test_acc = evaluate_model(id3_tree, X_train, y_train, X_test, y_test)

    print("\n使用C4.5决策树(信息增益率):")
    c45_tree = C45DecisionTree(max_depth=5)
    c45_test_acc = evaluate_model(c45_tree, X_train, y_train, X_test, y_test)


if __name__ == "__main__":
    main()
