1.启动nameserver、broker、dashboard

docker run -d -p 9876:9876 -v D:/soft/docker/RocketMQ/namesrv/logs:/home/rocketmq/namesrv/logs -v D:/soft/docker/RocketMQ/namesrv/store:/home/rocketmq/namesrv/store --name RocketMQ-Namesrv -e "MAX_POSSIBLE_HEAP=100000000" apache/rocketmq:latest sh mqnamesrv

#启动broker
docker run -d -p 10911:10911 -p 10909:10909 -v D:/soft/docker/RocketMQ/broker/conf/broker.conf:/home/rocketmq/broker/conf/broker.conf --name RocketMQ-Broker -e "NAMESRV_ADDR=192.168.21.121:9876" -e "MAX_POSSIBLE_HEAP=200000000" apache/rocketmq:latest sh mqbroker -c /home/rocketmq/broker/conf/broker.conf

#启动可视化工具
docker run -p 9100:8080 --name RocketMQ-Dashboard -d -e "JAVA_OPTS=-Drocketmq.namesrv.addr=192.168.21.121:9876" -t apacherocketmq/rocketmq-dashboard

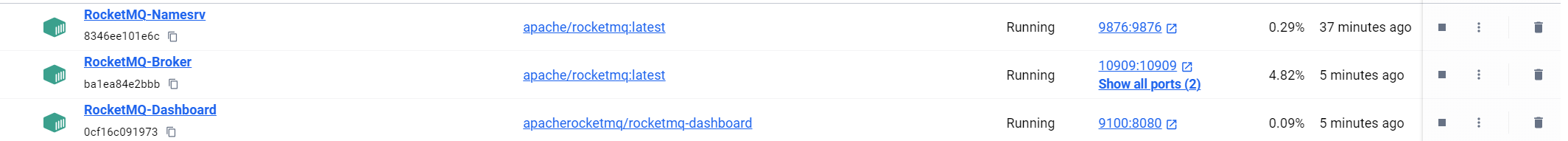

2.docker-desktop

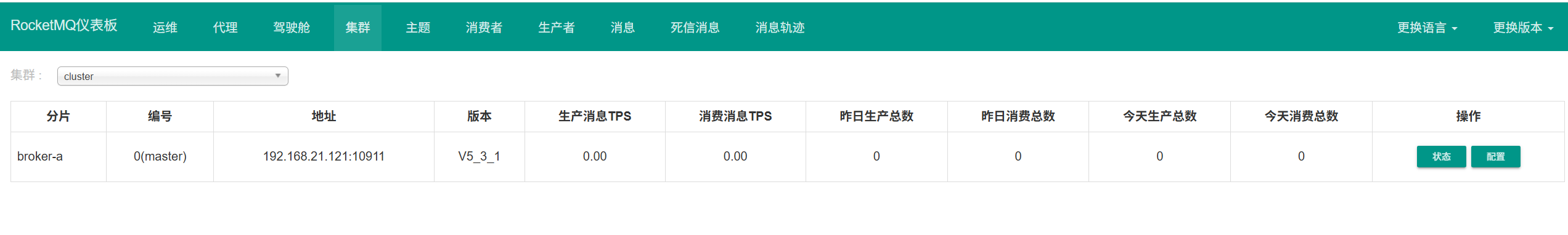

3.访问可视化页面
