openeular系统部署部署K8S+docker运行环境
1、系统环境
操作系统：openeular22.03sp4
架构：X86
2、配置环境

①配置DNS，以确保域名解析正常。

创建resolv.conf文件。

touch /etc/resolv.conf

配置DNS域名解析。
打开resolv.conf文件。

vi /etc/resolv.conf

按“i”进入编辑模式，在文件中添加如下内容。

nameserver 114.114.114.114

说明
本例中DNS地址配置为114.114.114.114，可根据实际情况进行配置，请确保“/etc/resolv.conf”中的DNS地址可用。

按“Esc”键退出编辑模式，输入:wq!，按“Enter”键保存并退出文件。
②关闭selinux
SELinux可能会限制应用的访问权限，因此需要关闭SELinux，以确保应用能够正常工作。关闭SELinux可能会降低系统的安全性，使系统更容易受到潜在的安全问题和攻击。在关闭之前，您应该仔细评估潜在的风险。请在所有节点关闭SELinux。

临时关闭SELinux。

setenforce 0

永久关闭SELinux。
执行如下命令修改配置文件，永久关闭SELinux。

sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config
cat /etc/selinux/config

③为保证业务组件的相互通信，可在所有节点关闭防火墙。

关闭防火墙。

systemctl stop firewalld.service
systemctl disable firewalld.service

查看防火墙。

systemctl status firewalld.service

④安装docker

添加源

dnf config-manager --add-repo https://repo.oepkgs.net/openeuler/rpm/openEuler-22.03-LTS-SP4/contrib/ai/x86_64

更新源索引

dnf clean all && dnf makecache

安装 docker-ce 软件包

dnf install docker-ce

3、单节点部署
安装依赖。

yum install -y curl socat conntrack openssl ipset ipvsadm

创建 Kubernetes 集群
如果您访问 GitHub/Googleapis 受限，请登录任意集群节点，执行以下命令设置下载区域：

export KKZONE=cn

执行以下命令下载 KubeKey 最新版本：

curl -sfL https://get-kk.kubesphere.io | sh -

下载完成后当前目录下将生成 KubeKey 二进制文件 kk。

执行以下命令为 KubeKey 二进制文件 kk 添加执行权限：

sudo chmod +x kk

执行以下命令创建安装配置文件 config-sample.yaml：

 ./kk create config --with-kubernetes <Kubernetes version>

将 替换为实际需要的版本，例如 v1.27.4。KubeSphere 企业版默认支持 Kubernetes v1.21~1.30。

命令执行完毕后将生成安装配置文件 config-sample.yaml。

配置config-sample.yaml,以下为单节点部署的配置文件

apiVersion: kubekey.kubesphere.io/v1alpha2
kind: Cluster
metadata:
  name: sample
spec:
  hosts:
  - {name: node1, address: 192.168.32.150, internalAddress: 192.168.32.150, user: root, password: "********"}
  roleGroups:
    etcd:
    - node1
    control-plane:
    - node1
    worker:
    - node1
  controlPlaneEndpoint:
    ## Internal loadbalancer for apiservers
    # internalLoadbalancer: haproxy

    domain: lb.kubesphere.local
    address: ""
    port: 6443
  kubernetes:
    version: v1.23.10
    clusterName: cluster.local
    autoRenewCerts: true
    containerManager: docker
  etcd:
    type: kubekey
  network:
    plugin: calico
    kubePodsCIDR: 10.233.64.0/18
    kubeServiceCIDR: 10.233.0.0/18
    ## multus support. https://github.com/k8snetworkplumbingwg/multus-cni
    multusCNI:
      enabled: false
  registry:
    privateRegistry: ""
    namespaceOverride: ""
    registryMirrors:
    - "https://hub-mirror.c.163.com"
    - "https://mirror.baidubce.com"
    - "https://ccr.ccs.tencentyun.com"
    - "https://docker.1panelproxy.com"
    - "https://5e96702d4787418295070cded678a7b6.mirror.swr.myhuaweicloud.com"
    - "https://docker.m.daocloud.io"
    - "https://docker.imgdb.de"
    - "https://docker.wanpeng.life"
    - "https://docker.1panel.live"
    - "https://hk11.606166.xyz"
    - "https://docker.1ms.run"

    insecureRegistries: []
  addons: []



---
apiVersion: installer.kubesphere.io/v1alpha1
kind: ClusterConfiguration
metadata:
  name: ks-installer
  namespace: kubesphere-system
  labels:
    version: v3.4.1
spec:
  persistence:
    storageClass: ""
  authentication:
    jwtSecret: ""
  local_registry: ""
  # dev_tag: ""
  etcd:
    monitoring: false
    endpointIps: localhost
    port: 2379
    tlsEnable: true
  common:
    core:
      console:
        enableMultiLogin: true
        port: 30880
        type: NodePort
    # apiserver:
    #  resources: {}
    # controllerManager:
    #  resources: {}
    redis:
      enabled: false
      enableHA: false
      volumeSize: 2Gi
    openldap:
      enabled: false
      volumeSize: 2Gi
    minio:
      volumeSize: 20Gi
    monitoring:
      # type: external
      endpoint: http://prometheus-operated.kubesphere-monitoring-system.svc:9090
      GPUMonitoring:
        enabled: false
    gpu:
      kinds:
      - resourceName: "nvidia.com/gpu"
        resourceType: "GPU"
        default: true
    es:
      # master:
      #   volumeSize: 4Gi
      #   replicas: 1
      #   resources: {}
      # data:
      #   volumeSize: 20Gi
      #   replicas: 1
      #   resources: {}
      enabled: false
      logMaxAge: 7
      elkPrefix: logstash
      basicAuth:
        enabled: false
        username: ""
        password: ""
      externalElasticsearchHost: ""
      externalElasticsearchPort: ""
    opensearch:
      # master:
      #   volumeSize: 4Gi
      #   replicas: 1
      #   resources: {}
      # data:
      #   volumeSize: 20Gi
      #   replicas: 1
      #   resources: {}
      enabled: true
      logMaxAge: 7
      opensearchPrefix: whizard
      basicAuth:
        enabled: true
        username: "admin"
        password: "admin"
      externalOpensearchHost: ""
      externalOpensearchPort: ""
      dashboard:
        enabled: false
  alerting:
    enabled: false
    # thanosruler:
    #   replicas: 1
    #   resources: {}
  auditing:
    enabled: false
    # operator:
    #   resources: {}
    # webhook:
    #   resources: {}
  devops:
    enabled: false
    jenkinsCpuReq: 0.5
    jenkinsCpuLim: 1
    jenkinsMemoryReq: 4Gi
    jenkinsMemoryLim: 4Gi
    jenkinsVolumeSize: 16Gi
  events:
    enabled: false
    # operator:
    #   resources: {}
    # exporter:
    #   resources: {}
    ruler:
      enabled: true
      replicas: 2
    #   resources: {}
  logging:
    enabled: false
    logsidecar:
      enabled: true
      replicas: 2
      # resources: {}
  metrics_server:
    enabled: false
  monitoring:
    storageClass: ""
    node_exporter:
      port: 9100
      # resources: {}
    # kube_rbac_proxy:
    #   resources: {}
    # kube_state_metrics:
    #   resources: {}
    # prometheus:
    #   replicas: 1
    #   volumeSize: 20Gi
    #   resources: {}
    #   operator:
    #     resources: {}
    # alertmanager:
    #   replicas: 1
    #   resources: {}
    # notification_manager:
    #   resources: {}
    #   operator:
    #     resources: {}
    #   proxy:
    #     resources: {}
    gpu:
      nvidia_dcgm_exporter:
        enabled: false
        # resources: {}
  multicluster:
    clusterRole: none
  network:
    networkpolicy:
      enabled: false
    ippool:
      type: none
    topology:
      type: none
  openpitrix:
    store:
      enabled: false
  servicemesh:
    enabled: false
    istio:
      components:
        ingressGateways:
        - name: istio-ingressgateway
          enabled: false
        cni:
          enabled: false
  edgeruntime:
    enabled: false
    kubeedge:
      enabled: false
      cloudCore:
        cloudHub:
          advertiseAddress:
            - ""
        service:
          cloudhubNodePort: "30000"
          cloudhubQuicNodePort: "30001"
          cloudhubHttpsNodePort: "30002"
          cloudstreamNodePort: "30003"
          tunnelNodePort: "30004"
        # resources: {}
        # hostNetWork: false
      iptables-manager:
        enabled: true
        mode: "external"
        # resources: {}
      # edgeService:
      #   resources: {}
  gatekeeper:
    enabled: false
    # controller_manager:
    #   resources: {}
    # audit:
    #   resources: {}
  terminal:
    timeout: 600
  zone: ""

关键点配置：
节点信息：

spec:
  hosts:
  - {name: node1, address: 192.168.32.150, internalAddress: 192.168.32.150, user: root, password: "********"}

K8S的镜像拉取加速配置

registry:
    privateRegistry: ""
    namespaceOverride: ""
    registryMirrors:
    - "https://hub-mirror.c.163.com"
    - "https://mirror.baidubce.com"
    - "https://ccr.ccs.tencentyun.com"
    - "https://docker.1panelproxy.com"
    - "https://5e96702d4787418295070cded678a7b6.mirror.swr.myhuaweicloud.com"
    - "https://docker.m.daocloud.io"
    - "https://docker.imgdb.de"
    - "https://docker.wanpeng.life"
    - "https://docker.1panel.live"
    - "https://hk11.606166.xyz"
    - "https://docker.1ms.run"

5、自动配置安装
执行以下命令：

./kk create cluster -f config-sample.yaml

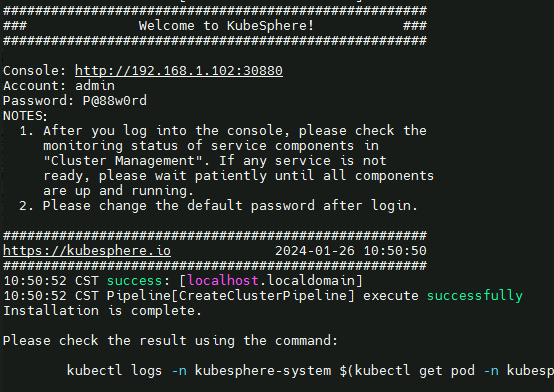

6，安装完成后会显示默认的登录信息
类似以下信息、：
