PHP项目Kubernetes部署与Jenkins CI/CD流水线全栈实践指南
·
第一步：Jenkins 配置
一、Jenkins Master 基础镜像制作
1. 目录结构
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/jenkins-setup/master# tree -a -L 1
.
├── Dockerfile.master
├── entrypoint.sh
├── jdk-17.0.12
└── jenkins.war
2 directories, 5 files
2. Dockerfile.master内容
# Dockerfile.master
FROM ubuntu:22.04
LABEL maintainer="devops@example.com"
# 设置变量
ENV JAVA_HOME=/data/jdk-17.0.12 \
JENKINS_HOME=/var/jenkins_home \
JENKINS_VERSION=2.516.2
# 换国内源加速
RUN sed -i 's/archive.ubuntu.com/mirrors.aliyun.com/g' /etc/apt/sources.list && \
sed -i 's/security.ubuntu.com/mirrors.aliyun.com/g' /etc/apt/sources.list
# 安装基础工具
RUN apt-get update && \
apt-get install -y wget net-tools curl libfreetype6 fonts-dejavu-core fontconfig && \
rm -rf /var/lib/apt/lists/*
# 创建 jenkins 用户（UID=1000）
RUN groupadd --gid 1000 jenkins && \
useradd -m -u 1000 -g jenkins -d /home/jenkins jenkins && \
mkdir -p /var/jenkins_home && \
chown -R jenkins:jenkins /var/jenkins_home
# 添加 Java 到 PATH
ENV PATH="${JAVA_HOME}/bin:${PATH}"
WORKDIR /home/jenkins
#COPY jenkins.war /home/jenkins/jenkins.war
RUN chown jenkins:jenkins jenkins.war
# 使用 root 用户运行（按你的需求）
USER root
# 复制启动脚本
COPY entrypoint.sh /entrypoint.sh
RUN chmod +x /entrypoint.sh
EXPOSE 8080
ENTRYPOINT ["/entrypoint.sh"]
3. entrypoint.sh内容
#!/bin/bash
set -e
# ✅ 指向正确的 WAR 路径（当前用户目录下）
JAR="/home/jenkins/jenkins.war"
# 确保 Jenkins home 目录权限正确
chown -R jenkins:jenkins $JENKINS_HOME
exec java \
-Djenkins.install.runSetupWizard=false \
-Djenkins.CLI.disabled=true \
-Djenkins.model.Jenkins.pluginsUrl=https://mirrors.huaweicloud.com/jenkins/latest/plugins/%s.hpi \
-Djenkins.model.Jenkins.updateCenterUrl=https://mirrors.huaweicloud.com/jenkins/updates/update-center.json \
-Dhudson.model.DownloadService.noSignatureCheck=true \
-jar ${JAR} \
--httpPort=8080 \
--webroot=$JENKINS_HOME/war \
--argumentsRealm.passwd.jenkins=jenkins \
--argumentsRealm.roles.jenkins=admin
4. 镜像创建命令
docker build -f Dockerfile.master -t swr.cn-east-3.myhuaweicloud.com/bocheng-test/jenkins-master:v5 .
二、Jenkins Agent 基础镜像制作
1. 目录结构
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/jenkins-setup/agent# tree -a -L 2
.
├── agent.jar //此处不需要，Dockerfile里会自动下载
├── apache-maven-3.8.8 //mvn配置（此处不需要，java项目是需要的）
│ ├── bin
│ ├── boot
│ ├── conf
│ ├── lib
│ ├── LICENSE
│ ├── NOTICE
│ └── README.txt
├── Dockerfile.agent
├── jdk-17.0.12 //jdk的bin包
│ ├── bin
│ ├── conf
│ ├── include
│ ├── jmods
│ ├── legal
│ ├── lib
│ ├── LICENSE
│ ├── man
│ ├── README
│ └── release
├── jenkins-agent.sh
├── .kube //连接k8s集群配置文件
│ ├── cache
│ └── config
├── kubectl //工具类
└── .ssh //连接gitlab配置文件
├── authorized_keys
├── config
├── id_rsa_gitlab
├── id_rsa_gitlab.pub
└── known_hosts
2. Dockerfile.agent内容
# Dockerfile.agent - 完整可运行版本
FROM ubuntu:22.04
LABEL maintainer="devops@example.com"
# 设置环境变量
ENV AGENT_WORKDIR=/home/jenkins/agent \
JAVA_HOME=/data/jdk-17.0.12 \
MAVEN_HOME=/opt/apache-maven-3.8.8 \
NVM_DIR=/home/jenkins/.nvm \
USER=jenkins
# 添加 Java 和 Maven 到 PATH
ENV PATH="${JAVA_HOME}/bin:${MAVEN_HOME}/bin:${PATH}"
# 换源为阿里云加速 apt
RUN sed -i 's/archive.ubuntu.com/mirrors.aliyun.com/g' /etc/apt/sources.list && \
sed -i 's/security.ubuntu.com/mirrors.aliyun.com/g' /etc/apt/sources.list
# 安装基础工具
RUN apt-get update && \
apt-get install -y curl git vim sshpass rsync unzip python3-pip && \
rm -rf /var/lib/apt/lists/*
# 创建 jenkins 用户
RUN groupadd --gid 1000 jenkins && \
useradd -m -u 1000 -g jenkins -d /home/jenkins jenkins
# 创建 agent 工作目录
RUN mkdir -p $AGENT_WORKDIR && \
chown -R jenkins:jenkins $AGENT_WORKDIR
# 拷贝本地 .SSH
COPY .ssh /root/.ssh
RUN chmod 600 /root/.ssh/id_rsa_gitlab
# 拷贝本地 .kube
COPY .kube /root/.kube
COPY kubectl /usr/bin/kubectl
RUN chmod 755 /usr/bin/kubectl
# 拷贝本地 JDK
COPY jdk-17.0.12 /data/jdk-17.0.12
# 拷贝本地 Maven
COPY apache-maven-3.8.8 /opt/apache-maven-3.8.8
# 设置 Maven 权限
RUN chmod +x /opt/apache-maven-3.8.8/bin/mvn && \
chown -R jenkins:jenkins /opt/apache-maven-3.8.8
# 🔧 拷贝启动脚本
COPY jenkins-agent.sh /usr/local/bin/jenkins-agent.sh
RUN chmod +x /usr/local/bin/jenkins-agent.sh && \
chown jenkins:jenkins /usr/local/bin/jenkins-agent.sh
# 确保所有文件归属 jenkins 用户
RUN chown -R jenkins:jenkins /home/jenkins
# 🔥 关键设置：切换用户并定义入口点
USER jenkins
WORKDIR $AGENT_WORKDIR
ENTRYPOINT ["/usr/local/bin/jenkins-agent.sh"]
3. jenkins-agent.sh内容
#!/bin/bash
# jenkins-agent.sh
set -e
if [ -z "$1" ] || [ -z "$2" ]; then
echo "❌ 错误：缺少 JNLP secret 或 agent name"
echo "💡 用法: $0 <secret> <agent-name>"
exit 1
fi
export AGENT_WORKDIR="/home/jenkins/agent"
export JAVA_HOME="/data/jdk-17.0.12"
export PATH="$JAVA_HOME/bin:$PATH"
cd "$AGENT_WORKDIR"
curl -fsSL -o agent.jar http://jenkins-master.jenkins.svc.cluster.local:8080/jnlpJars/agent.jar
exec java \
-Duser.home=/home/jenkins \
-Djava.awt.headless=true \
-jar ./agent.jar \
-url http://jenkins-master.jenkins.svc.cluster.local:8080 \
-webSocket \
-workDir "$AGENT_WORKDIR" \
-headless \
"$1" "$2"
4. 镜像创建命令
docker build -f Dockerfile.agent -t swr.cn-east-3.myhuaweicloud.com/bocheng-test/jenkins-agent:v9 .
三、Jenkins 相关的配置
1. Jenkins Ingress 配置 (jenkins-ingress.yaml)
# ~/jenkins-setup/jenkins-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: jenkins-ingress
namespace: jenkins
annotations:
# 移除 configuration-snippet！这是被禁用的
nginx.ingress.kubernetes.io/ssl-redirect: "false"
nginx.ingress.kubernetes.io/proxy-body-size: "0"
nginx.ingress.kubernetes.io/proxy-connect-timeout: "3600"
nginx.ingress.kubernetes.io/proxy-send-timeout: "3600"
nginx.ingress.kubernetes.io/proxy-read-timeout: "3600"
nginx.ingress.kubernetes.io/proxy-request-buffering: "off"
# 可选：启用 WebSocket 支持（默认已开启）
nginx.ingress.kubernetes.io/websocket-services: jenkins-master
spec:
# ✅ 显式指定 ingressClass
ingressClassName: nginx
rules:
- host: jenkins.local
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: jenkins-master
port:
number: 8080
2. Jenkins 连接 Kubernetes 集群的权限配置 (rbac.yaml)
# rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: jenkins
namespace: jenkins
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: jenkins
rules:
- apiGroups: [""]
resources: ["pods", "services", "secrets", "configmaps", "events"]
verbs: ["get", "list", "watch", "create", "delete", "update"]
- apiGroups: ["batch"]
resources: ["jobs"]
verbs: ["get", "list", "watch", "create", "delete"]
- apiGroups: ["apps"]
resources: ["deployments", "statefulsets"]
verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: jenkins
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: jenkins
subjects:
- kind: ServiceAccount
name: jenkins
namespace: jenkins
3. Jenkins 的落盘存储配置
4.1 Jenkins Master 的落盘存储
apiVersion: v1
kind: PersistentVolume
metadata:
name: jenkins-pv
spec:
capacity:
storage: 10Gi
volumeMode: Filesystem
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
storageClassName: local-storage
local:
path: /data/jenkins-pv
nodeAffinity:
required:
nodeSelectorTerms:
- matchExpressions:
- key: kubernetes.io/hostname
operator: In
values:
- k8s-node1
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: jenkins-pvc
namespace: jenkins
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 10Gi
storageClassName: local-storage
volumeName: jenkins-pv
4.2 NFS 存储配置 (用于应用数据)
apiVersion: v1
kind: PersistentVolume
metadata:
name: nfs-pv-dbb-live-api-test-jenkins # 新名字，避免冲突
spec:
capacity:
storage: 10Gi
accessModes:
- ReadWriteMany
persistentVolumeReclaimPolicy: Retain
nfs:
server: 192.168.122.189
path: /opt/nfs/dbb-live-api-test # 同一 NFS 路径，允许多个 PV 指向它
mountOptions:
- nfsvers=4.1
- hard
- intr
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: nfs-pvc-dbb-live-api-test # 保持与 pipeline 中引用的名称一致
namespace: jenkins # 必须是 Jenkins Pod 所在命名空间
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 10Gi
volumeName: nfs-pv-dbb-live-api-test-jenkins # 绑定新创建的 PV
5. Jenkins 的主YAML文件 (jenkins-main.yaml)
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: jenkins
namespace: jenkins
spec:
serviceName: jenkins-headless
replicas: 1
selector:
matchLabels:
app: jenkins-master
template:
metadata:
labels:
app: jenkins-master
spec:
serviceAccountName: jenkins
# 固定调度到 k8s-node1
nodeSelector:
kubernetes.io/hostname: k8s-node1
# 容忍 control-plane/master 节点污点
tolerations:
- key: node-role.kubernetes.io/control-plane
operator: Exists
effect: NoSchedule
- key: node-role.kubernetes.io/master
operator: Exists
effect: NoSchedule
# 挂载已有的 PVC
volumes:
- name: jenkins-home
persistentVolumeClaim:
claimName: jenkins-pvc
containers:
- name: jenkins-master
image: swr.cn-east-3.myhuaweicloud.com/bocheng-test/jenkins-master:v5
ports:
- containerPort: 8080
name: http
- containerPort: 50000
name: jnlp
volumeMounts:
- name: jenkins-home
mountPath: /var/jenkins_home
resources:
requests:
memory: "2Gi"
cpu: "500m"
limits:
memory: "4Gi"
cpu: "1000m"
---
# Headless Service（用于 StatefulSet 稳定网络标识）
apiVersion: v1
kind: Service
metadata:
name: jenkins-headless
namespace: jenkins
spec:
clusterIP: None # Headless
selector:
app: jenkins-master
ports:
- port: 8080
targetPort: 8080
name: http
- port: 5000
targetPort: 50000
name: jnlp
---
# 外部访问 Service（LoadBalancer 或 NodePort）
apiVersion: v1
kind: Service
metadata:
name: jenkins-master
namespace: jenkins
spec:
type: LoadBalancer # 如果没有 LB，可改为 NodePort
selector:
app: jenkins-master
ports:
- name: http
port: 8080
targetPort: 8080
- name: jnlp
port: 50000
targetPort: 50000
6. Jenkins 主界面配置

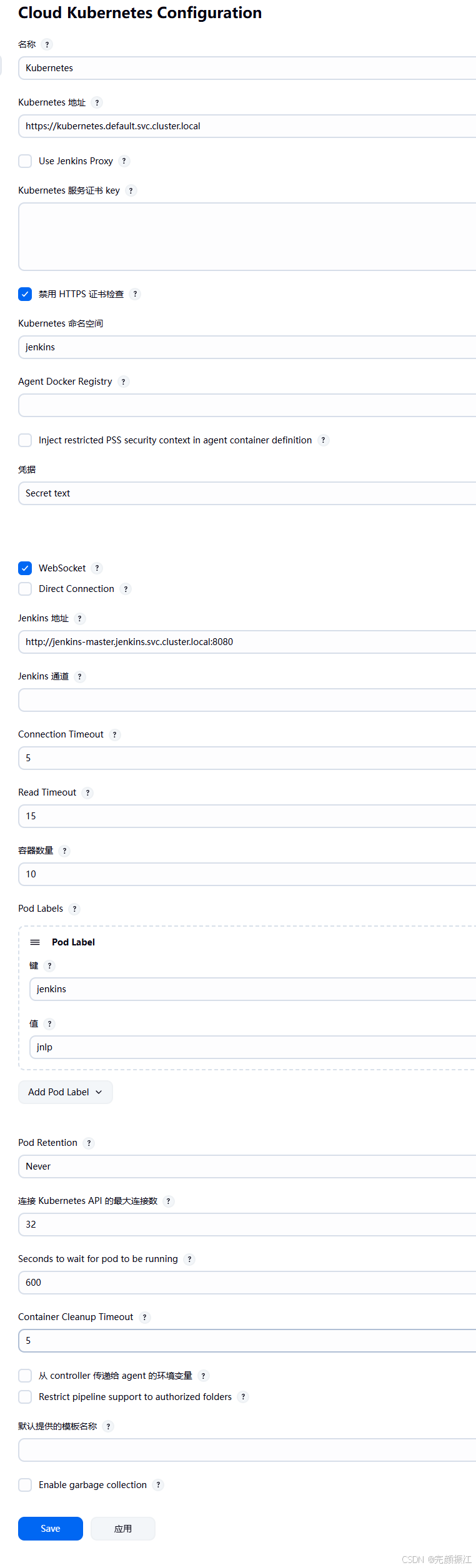

1. Cloud Kubernetes Configuration
- 在Jenkins管理界面 -> 系统配置 -> 云中，添加Kubernetes云。
- 配置Kubernetes服务器地址、凭证（使用
jenkinsServiceAccount的token）。 - 设置Jenkins URL为
http://jenkins-master.jenkins.svc.cluster.local:8080。

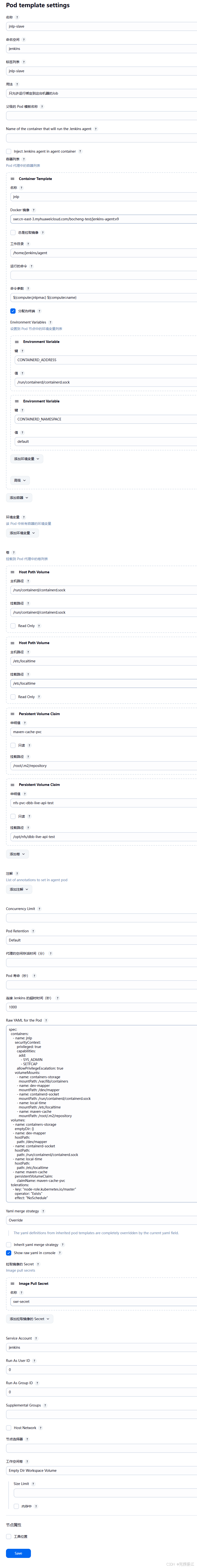

2. Pod Template Settings
- 定义Pod模板，使用我们构建的
swr.cn-east-3.myhuaweicloud.com/bocheng-test/jenkins-agent:v9镜像。 - 配置容器模板，设置工作目录
/home/jenkins/agent。 - 将
.ssh和.kube目录挂载为卷，以便Agent可以访问GitLab和Kubernetes集群。
spec:
containers:
- name: jnlp
securityContext:
privileged: true
capabilities:
add:
- SYS_ADMIN
- SETFCAP
allowPrivilegeEscalation: true
volumeMounts:
- name: containers-storage
mountPath: /var/lib/containers
- name: dev-mapper
mountPath: /dev/mapper
- name: containerd-socket
mountPath: /run/containerd/containerd.sock
- name: local-time
mountPath: /etc/localtime
- name: maven-cache
mountPath: /root/.m2/repository
volumes:
- name: containers-storage
emptyDir: {}
- name: dev-mapper
hostPath:
path: /dev/mapper
- name: containerd-socket
hostPath:
path: /run/containerd/containerd.sock
- name: local-time
hostPath:
path: /etc/localtime
- name: maven-cache
persistentVolumeClaim:
claimName: maven-cache-pvc
tolerations:
- key: "node-role.kubernetes.io/master"
operator: "Exists"
effect: "NoSchedule"
7. Jenkins 的插件
- 确保安装了以下核心插件：
Kubernetes Plugin: 用于动态创建Jenkins Agent Pod。Git Plugin: 用于拉取代码。Pipeline: 提供流水线支持。Credentials Binding Plugin: 用于绑定凭据。Blue Ocean: 提供现代化的UI。
4. k8s环境对华为云镜像仓库的配置
root@k8s-master:~# kubectl get secret
NAME TYPE DATA AGE
swr-registry-secret kubernetes.io/dockerconfigjson 1 4d22h
swr-secret kubernetes.io/dockerconfigjson 1 4d22h
root@k8s-master:~# kubectl get secret -n test
NAME TYPE DATA AGE
nginx-ssl-liveapi Opaque 2 4d16h
root@k8s-master:~# kubectl get secret -n jenkins
NAME TYPE DATA AGE
swr-registry-secret kubernetes.io/dockerconfigjson 1 4d22h
swr-secret kubernetes.io/dockerconfigjson 1 4d22h
第二步：Ingress 配置
1. Ingress Nginx控制器配置 (ingress-nginx-controller.yaml)
apiVersion: v1
kind: Namespace
metadata:
labels:
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
name: ingress-nginx
---
apiVersion: v1
automountServiceAccountToken: true
kind: ServiceAccount
metadata:
labels:
app.kubernetes.io/component: controller
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx
namespace: ingress-nginx
---
apiVersion: v1
automountServiceAccountToken: true
kind: ServiceAccount
metadata:
labels:
app.kubernetes.io/component: admission-webhook
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx-admission
namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
labels:
app.kubernetes.io/component: controller
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx
namespace: ingress-nginx
rules:
- apiGroups:
- ""
resources:
- namespaces
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
labels:
app.kubernetes.io/component: controller
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx
namespace: ingress-nginx
rules:
- apiGroups:
- ""
resources:
- namespaces
- configmaps
- pods
- secrets
- endpoints
verbs:
- get
- list
- watch
- apiGroups:
- ""
resources:
- services
verbs:
- get
- list
- watch
- apiGroups:
- networking.k8s.io
resources:
- ingresses
verbs:
- get
- list
- watch
- apiGroups:
- networking.k8s.io
resources:
- ingresses/status
verbs:
- update
- apiGroups:
- networking.k8s.io
resources:
- ingressclasses
verbs:
- get
- list
- watch
- apiGroups:
- coordination.k8s.io
resourceNames:
- ingress-nginx-leader
resources:
- leases
verbs:
- get
- update
- apiGroups:
- coordination.k8s.io
resources:
- leases
verbs:
- create
- apiGroups:
- ""
resources:
- events
verbs:
- create
- patch
- apiGroups:
- discovery.k8s.io
resources:
- endpointslices
verbs:
- list
- watch
- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
labels:
app.kubernetes.io/component: admission-webhook
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx-admission
namespace: ingress-nginx
rules:
- apiGroups:
- ""
resources:
- secrets
verbs:
- get
- create
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
app.kubernetes.io/component: controller
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx
namespace: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: ingress-nginx
subjects:
- kind: ServiceAccount
name: ingress-nginx
namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
app.kubernetes.io/component: admission-webhook
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx-admission
namespace: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
name: ingress-nginx-admission
namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx
rules:
- apiGroups:
- ""
resources:
- configmaps
- endpoints
- nodes
- pods
- secrets
- namespaces
verbs:
- list
- watch
- apiGroups:
- coordination.k8s.io
resources:
- leases
verbs:
- list
- watch
- apiGroups:
- ""
resources:
- nodes
verbs:
- get
- apiGroups:
- ""
resources:
- services
verbs:
- get
- list
- watch
- apiGroups:
- networking.k8s.io
resources:
- ingresses
verbs:
- get
- list
- watch
- apiGroups:
- ""
resources:
- events
verbs:
- create
- patch
- apiGroups:
- networking.k8s.io
resources:
- ingresses/status
verbs:
- update
- apiGroups:
- networking.k8s.io
resources:
- ingressclasses
verbs:
- get
- list
- watch
- apiGroups:
- discovery.k8s.io
resources:
- endpointslices
verbs:
- list
- watch
- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
app.kubernetes.io/component: admission-webhook
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx-admission
rules:
- apiGroups:
- admissionregistration.k8s.io
resources:
- validatingwebhookconfigurations
verbs:
- get
- update
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: ingress-nginx
subjects:
- kind: ServiceAccount
name: ingress-nginx
namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
app.kubernetes.io/component: admission-webhook
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx-admission
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
name: ingress-nginx-admission
namespace: ingress-nginx
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app.kubernetes.io/component: controller
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx-controller
namespace: ingress-nginx
spec:
minReadySeconds: 0
revisionHistoryLimit: 10
selector:
matchLabels:
app.kubernetes.io/component: controller
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
strategy:
rollingUpdate:
maxUnavailable: 1
type: RollingUpdate
template:
metadata:
labels:
app.kubernetes.io/component: controller
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
spec:
containers:
- args:
- /nginx-ingress-controller
- --election-id=ingress-nginx-leader
- --controller-class=k8s.io/ingress-nginx
- --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
- --validating-webhook=:8443
- --validating-webhook-certificate=/usr/local/certificates/cert
- --validating-webhook-key=/usr/local/certificates/key
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- name: LD_PRELOAD
value: /usr/local/lib/libmimalloc.so
image: registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller:v1.13.2
lifecycle:
preStop:
exec:
command:
- /wait-shutdown
livenessProbe:
failureThreshold: 5
httpGet:
path: /healthz
port: 10254
scheme: HTTP
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 1
name: controller
ports:
- containerPort: 80
hostPort: 80
name: http
protocol: TCP
- containerPort: 443
hostPort: 443
name: https
protocol: TCP
- containerPort: 8443
name: webhook
protocol: TCP
readinessProbe:
failureThreshold: 3
httpGet:
path: /healthz
port: 10254
scheme: HTTP
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 1
resources:
requests:
cpu: 100m
memory: 90Mi
securityContext:
allowPrivilegeEscalation: true
capabilities:
add:
- NET_BIND_SERVICE
drop:
- ALL
runAsUser: 101
seccompProfile:
type: RuntimeDefault
volumeMounts:
- mountPath: /usr/local/certificates/
name: webhook-cert
readOnly: true
dnsPolicy: ClusterFirst
nodeSelector:
kubernetes.io/os: linux
serviceAccountName: ingress-nginx
terminationGracePeriodSeconds: 300
volumes:
- name: webhook-cert
secret:
secretName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:
labels:
app.kubernetes.io/component: admission-webhook
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx-admission-create
namespace: ingress-nginx
spec:
template:
metadata:
labels:
app.kubernetes.io/component: admission-webhook
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
spec:
containers:
- args:
- create
- --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
- --namespace=$(POD_NAMESPACE)
- --secret-name=ingress-nginx-admission
env:
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
image: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-webhook-certgen:v1.3.0
name: create
securityContext:
allowPrivilegeEscalation: false
nodeSelector:
kubernetes.io/os: linux
restartPolicy: OnFailure
securityContext:
fsGroup: 2000
runAsNonRoot: true
runAsUser: 2000
serviceAccountName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:
labels:
app.kubernetes.io/component: admission-webhook
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx-admission-patch
namespace: ingress-nginx
spec:
template:
metadata:
labels:
app.kubernetes.io/component: admission-webhook
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
spec:
containers:
- args:
- patch
- --webhook-name=ingress-nginx-admission
- --namespace=$(POD_NAMESPACE)
- --patch-mutating=false
- --secret-name=ingress-nginx-admission
- --patch-failure-policy=Fail
env:
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
image: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-webhook-certgen:v1.3.0
name: patch
securityContext:
allowPrivilegeEscalation: false
nodeSelector:
kubernetes.io/os: linux
restartPolicy: OnFailure
securityContext:
fsGroup: 2000
runAsNonRoot: true
runAsUser: 2000
serviceAccountName: ingress-nginx-admission
---
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
labels:
app.kubernetes.io/component: controller
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: nginx
spec:
controller: k8s.io/ingress-nginx
---
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
labels:
app.kubernetes.io/component: admission-webhook
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.13.2
name: ingress-nginx-admission
webhooks:
- admissionReviewVersions:
- v1
clientConfig:
service:
name: ingress-nginx-controller-admission
namespace: ingress-nginx
path: /networking/v1/ingresses
port: 443
failurePolicy: Fail
matchPolicy: Equivalent
name: validate.nginx.ingress.kubernetes.io
rules:
- apiGroups:
- networking.k8s.io
apiVersions:
- v1
operations:
- CREATE
- UPDATE
resources:
- ingresses
sideEffects: None
2. Nginx服务的Ingress示例
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: {APP_NAME}-ingress
namespace: test
annotations:
nginx.ingress.kubernetes.io/ssl-redirect: "false"
nginx.ingress.kubernetes.io/proxy-body-size: "0"
nginx.ingress.kubernetes.io/proxy-connect-timeout: "3600"
nginx.ingress.kubernetes.io/proxy-send-timeout: "3600"
nginx.ingress.kubernetes.io/proxy-read-timeout: "3600"
nginx.ingress.kubernetes.io/proxy-request-buffering: "off"
nginx.ingress.kubernetes.io/websocket-services: {APP_NAME}
spec:
ingressClassName: nginx
rules:
- host: {APP_DOMAIN}
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: {APP_NAME}-service
port:
number: 80
3. 证书的配置
service-nodeport配置
# service-nodeport.yaml
apiVersion: v1
kind: Service
metadata:
name: custom-nginx-service
namespace: test
spec:
type: NodePort
selector:
app: custom-nginx
ports:
- name: http
port: 80
targetPort: 80
nodePort: 30082
- name: https
port: 443
targetPort: 443
nodePort: 30444
NFS的信息（nginx配置在NFS上）
# /etc/exports: the access control list for filesystems which may be exported
# to NFS clients. See exports(5).
#
# Example for NFSv2 and NFSv3:
# /srv/homes hostname1(rw,sync,no_subtree_check) hostname2(ro,sync,no_subtree_check)
#
# Example for NFSv4:
# /srv/nfs4 gss/krb5i(rw,sync,fsid=0,crossmnt,no_subtree_check)
# /srv/nfs4/homes gss/krb5i(rw,sync,no_subtree_check)
#
# 共享目录 允许的客户端(IP或网段) (选项)
/opt/nfs/dbb-live-api-test/ *(rw,sync,no_root_squash,no_subtree_check)
/opt/nfs/nginx *(rw,sync,no_root_squash,no_subtree_check)
/opt/nfs/dbb-live-api/ *(rw,sync,no_root_squash,no_subtree_check)
root@vm01:~# cd /opt/nfs/nginx
root@vm01:/opt/nfs/nginx# tree -L 2
.
├── conf.d
│ ├── liveapi.doubbjt.com.conf
│ └── shopapi.doubbjt.com.conf
├── mime.types
├── nginx.conf
└── ssl
├── doubbjt.com.key
└── doubbjt.com.pem
2 directories, 6 files
root@vm01:/opt/nfs/nginx# cat conf.d/liveapi.doubbjt.com.conf
server {
listen 80;
listen 443 ssl http2;
server_name testliveapi.doubbjt.com;
index index.php index.html index.htm;
# ✅ SSL 配置（保持不变）
ssl_certificate /etc/nginx/ssl/doubbjt.com.pem;
ssl_certificate_key /etc/nginx/ssl/doubbjt.com.key;
ssl_protocols TLSv1.1 TLSv1.2 TLSv1.3;
ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4:!DH:!DHE;
ssl_prefer_server_ciphers on;
ssl_session_cache shared:SSL:10m;
ssl_session_timeout 10m;
location ~ .*.(php|php5)?$
{
fastcgi_pass 127.0.0.1:9000;
fastcgi_index index.php;
include fastcgi.conf;
}
location ~ .*\.(gif|jpg|jpeg|png|bmp|swf)$
{
expires 30d;
error_log off;
access_log /var/log/nginx/testliveapi.doubbjt.com.log;
}
location ~ .*\.(js|css)?$
{
expires 12h;
error_log off;
access_log /var/log/nginx/testliveapi.doubbjt.com.log;
}
location ^~ /.well-known/acme-challenge/ {
root /www/wwwroot/testliveapi1.doubbjt.com;
allow all;
default_type "text/plain";
try_files $uri =404;
}
access_log /var/log/nginx/liveapi.doubbjt.com.log main;
error_log /var/log/nginx/liveapi.doubbjt.com.error.log;
}
root@vm01:/opt/nfs/nginx# cat mime.types
types {
text/html html htm shtml;
text/css css;
text/xml xml;
image/gif gif;
image/jpeg jpeg jpg;
application/javascript js;
application/atom+xml atom;
application/rss+xml rss;
text/mathml mml;
text/plain txt;
text/vnd.sun.j2me.app-descriptor jad;
text/vnd.wap.wml wml;
text/x-component htc;
image/png png;
image/svg+xml svg svgz;
image/tiff tif tiff;
image/vnd.wap.wbmp wbmp;
image/webp webp;
image/x-icon ico;
image/x-jng jng;
image/x-ms-bmp bmp;
image/x-png png;
image/x-portable-anymap pnm;
image/x-portable-bitmap pbm;
image/x-portable-graymap pgm;
image/x-portable-pixmap ppm;
image/x-rgb rgb;
image/x-xbitmap xbmp;
image/x-xpixmap xpm;
image/x-xwindowdump xwd;
application/java-archive jar war ear;
application/mac-binhex40 hqx;
application/msword doc;
application/pdf pdf;
application/postscript ps eps ai;
application/rtf rtf;
application/vnd.apple.mpegurl m3u8;
application/vnd.ms-excel xls;
application/vnd.ms-powerpoint ppt;
application/vnd.wap.wmlc wmlc;
application/vnd.google-earth.kml+xml kml;
application/vnd.google-earth.kmz kmz;
application/x-7z-compressed 7z;
application/x-cocoa cco;
application/x-java-archive-delta jardiff;
application/x-java-jnlp-file jnlp;
application/x-makeself run;
application/x-perl pl pm;
application/x-pilot prc pdb;
application/x-rar-compressed rar;
application/x-redhat-package-manager rpm;
application/x-sea sea;
application/x-shockwave-flash swf;
application/x-stuffit sit;
application/x-tcl tcl tk;
application/x-x509-ca-cert der pem crt;
application/x-xpinstall xpi;
application/xhtml+xml xhtml;
application/xspf+xml xspf;
application/zip zip;
application/octet-stream bin exe dll;
application/octet-stream deb;
application/octet-stream dmg;
application/octet-stream eot;
application/octet-stream iso img;
application/octet-stream msi msp msm;
audio/midi mid midi kar;
audio/mpeg mp3;
audio/x-realaudio ra;
video/3gpp 3gpp 3gp;
video/mp2t ts;
video/mp4 mp4;
video/mpeg mpeg mpg;
video/quicktime mov;
video/webm webm;
video/x-flv flv;
video/x-mng mng;
video/x-ms-asf asx asf;
video/x-ms-wmv wmv;
video/x-msvideo avi;
}
root@vm01:/opt/nfs/nginx# cat nginx.conf
user root;
worker_processes auto;
error_log /var/log/nginx/nginx_error.log crit;
pid /var/log/nginx/nginx.pid;
worker_rlimit_nofile 51200;
events
{
use epoll;
worker_connections 51200;
multi_accept on;
}
http
{
log_format main
'$remote_addr - $remote_user [$time_local] '
'"$request" $status $body_bytes_sent '
'"$http_referer" "$http_user_agent" '
'rt=$request_time '
'upstream_addr="$upstream_addr" '
'upstream_status=$upstream_status '
'upstream_response_time=$upstream_response_time '
'upstream_cache_status="$upstream_cache_status"';
include mime.types;
default_type application/octet-stream;
server_names_hash_bucket_size 512;
client_header_buffer_size 32k;
large_client_header_buffers 4 32k;
client_max_body_size 50m;
sendfile on;
tcp_nopush on;
keepalive_timeout 60;
tcp_nodelay on;
fastcgi_connect_timeout 300;
fastcgi_send_timeout 300;
fastcgi_read_timeout 300;
fastcgi_buffer_size 64k;
fastcgi_buffers 4 64k;
fastcgi_busy_buffers_size 128k;
fastcgi_temp_file_write_size 256k;
fastcgi_intercept_errors on;
gzip on;
gzip_min_length 1k;
gzip_buffers 4 16k;
gzip_http_version 1.1;
gzip_comp_level 2;
gzip_types text/plain application/javascript application/x-javascript text/css application/xml;
gzip_vary on;
gzip_proxied expired no-cache no-store private auth;
gzip_disable "MSIE [1-6]\.";
limit_conn_zone $binary_remote_addr zone=perip:10m;
limit_conn_zone $server_name zone=perserver:10m;
server_tokens off;
access_log off;
include /etc/nginx/conf.d/*.conf;
}
deployment-nginx-nfs.yaml
# deployment-nginx-nfs.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: custom-nginx
namespace: test
labels:
app: custom-nginx
spec:
replicas: 1
selector:
matchLabels:
app: custom-nginx
template:
metadata:
labels:
app: custom-nginx
spec:
containers:
- name: nginx
image: swr.cn-east-3.myhuaweicloud.com/bocheng-test/ubuntu:22.04_v1
imagePullPolicy: IfNotPresent
command: ["/bin/bash", "-c"]
args:
-|
set -ex
# 检查 NFS 挂载中是否有配置文件
if [ ! -f "/etc/nginx/nginx.conf" ]; then
echo "📄 NFS 目录为空，首次初始化：从模板复制配置..."
mkdir -p /etc/nginx/conf.d
cp /tmp/config/nginx.conf /etc/nginx/nginx.conf
cp /tmp/config/liveapi.doubbjt.com.conf /etc/nginx/conf.d/
else
echo "🔁 使用 NFS 中已有配置。"
fi
# 创建必要运行目录（使用 tmpfs）
mkdir -p /run/nginx /var/log/nginx /www/server/nginx/logs
# 启动 Nginx
echo "🚀 启动 Nginx 服务..."
exec /usr/sbin/nginx -g "daemon off;"
ports:
- containerPort: 80
- containerPort: 443
volumeMounts:
- name: nginx-config-nfs
mountPath: /etc/nginx
- name: config-volume
mountPath: /tmp/config
readOnly: true
- name: ssl-certs
mountPath: /etc/nginx/ssl
securityContext:
runAsUser: 0
allowPrivilegeEscalation: true
capabilities:
add:
- NET_BIND_SERVICE
volumes:
- name: config-volume
configMap:
name: custom-nginx-config
- name: nginx-config-nfs
nfs:
server: 192.168.122.189
path: /opt/nfs/nginx
- name: ssl-certs
secret:
secretName: nginx-ssl-liveapi
依赖配置文件
# configmap
apiVersion: v1
kind: ConfigMap
metadata:
name: custom-nginx-config
namespace: test
data:
nginx.conf: |
user root;
worker_processes auto;
error_log /var/log/nginx/nginx_error.log crit;
pid /var/log/nginx/nginx.pid;
worker_rlimit_nofile 51200;
events
{
use epoll;
worker_connections 51200;
multi_accept on;
}
http
{
log_format main
'$remote_addr - $remote_user [$time_local] '
'"$request" $status $body_bytes_sent '
'"$http_referer" "$http_user_agent" '
'rt=$request_time '
'upstream_addr="$upstream_addr" '
'upstream_status=$upstream_status '
'upstream_response_time=$upstream_response_time '
'upstream_cache_status="$upstream_cache_status"';
include mime.types;
default_type application/octet-stream;
server_names_hash_bucket_size 512;
client_header_buffer_size 32k;
large_client_header_buffers 4 32k;
client_max_body_size 50m;
sendfile on;
tcp_nopush on;
keepalive_timeout 60;
tcp_nodelay on;
fastcgi_connect_timeout 300;
fastcgi_send_timeout 300;
fastcgi_read_timeout 300;
fastcgi_buffer_size 64k;
fastcgi_buffers 4 64k;
fastcgi_busy_buffers_size 128k;
fastcgi_temp_file_write_size 256k;
fastcgi_intercept_errors on;
gzip on;
gzip_min_length 1k;
gzip_buffers 4 16k;
gzip_http_version 1.1;
gzip_comp_level 2;
gzip_types text/plain application/javascript application/x-javascript text/css application/xml;
gzip_vary on;
gzip_proxied expired no-cache no-store private auth;
gzip_disable "MSIE [1-6]\.";
limit_conn_zone $binary_remote_addr zone=perip:10m;
limit_conn_zone $server_name zone=perserver:10m;
server_tokens off;
access_log off;
include /etc/nginx/conf.d/*.conf;
}
liveapi.doubbjt.com.conf: |
server {
listen 80;
listen 443 ssl http2;
server_name testliveapi.doubbjt.com;
index index.php index.html index.htm;
# ✅ SSL 配置（保持不变）
ssl_certificate /etc/nginx/ssl/doubbjt.com.pem;
ssl_certificate_key /etc/nginx/ssl/doubbjt.com.key;
ssl_protocols TLSv1.1 TLSv1.2 TLSv1.3;
ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4:!DH:!DHE;
ssl_prefer_server_ciphers on;
ssl_session_cache shared:SSL:10m;
ssl_session_timeout 10m;
location ~ .*.(php|php5)?$
{
fastcgi_pass 127.0.0.1:9000;
fastcgi_index index.php;
include fastcgi.conf;
}
location ~ .*\.(gif|jpg|jpeg|png|bmp|swf)$
{
expires 30d;
error_log off;
access_log /var/log/nginx/testliveapi.doubbjt.com.log;
}
location ~ .*\.(js|css)?$
{
expires 12h;
error_log off;
access_log /var/log/nginx/testliveapi.doubbjt.com.log;
}
location ^~ /.well-known/acme-challenge/ {
root /www/wwwroot/testliveapi1.doubbjt.com;
allow all;
default_type "text/plain";
try_files $uri =404;
}
# ✅ 日志（使用你的 main 格式）
access_log /var/log/nginx/liveapi.doubbjt.com.log main;
error_log /var/log/nginx/liveapi.doubbjt.com.error.log;
}
第三步：Jenkins Pipeline
1. GitLab 配置部分
地址: https://gitlab.dbblive.com/kubernetes/yyh-devops/-/blob/master/dbbjt/php/dbb-live-api/k8s-deployment.yaml
该仓库 yyh-devops 存放了所有应用的Kubernetes部署清单模板。
k8s-deployment.yaml 模板内容
apiVersion: apps/v1
kind: Deployment
metadata:
name: {APP_NAME}
namespace: test
labels:
app: {APP_NAME}
spec:
replicas: 2
selector:
matchLabels:
app: {APP_NAME}
template:
metadata:
labels:
app: {APP_NAME}
spec:
initContainers:
- name: build-artisan-cache
image: swr.cn-east-3.myhuaweicloud.com/bocheng-test/php-fpm-prod:base_v4
env:
- name: APP_ENV
value: "production"
- name: CACHE_DRIVER
value: "file"
- name: SESSION_DRIVER
value: "file"
command: ["sh", "-c"]
args:
-|
set -ex
cd /var/www/html
rm -f bootstrap/cache/*.php
rm -rf storage/framework/cache/*
rm -rf storage/framework/views/*
rm -rf storage/framework/sessions/*
php artisan config:cache
php artisan route:cache
php artisan view:cache
php artisan event:cache
volumeMounts:
- name: nfs-storage
subPath: "{NFS_SUBPATH}"
mountPath: /var/www/html
containers:
- name: php-fpm
image: swr.cn-east-3.myhuaweicloud.com/bocheng-test/php-fpm-prod:base_v4
ports:
- containerPort: 9000
volumeMounts:
- name: nfs-storage
subPath: "{NFS_SUBPATH}"
mountPath: /var/www/html
resources:
limits:
memory: "512Mi"
cpu: "500m"
requests:
memory: "512Mi"
cpu: "500m"
securityContext:
runAsUser: 0
runAsGroup: 0
- name: nginx
image: swr.cn-east-3.myhuaweicloud.com/bocheng-test/nginx-laravel:base_v1
ports:
- containerPort: 80
volumeMounts:
- name: nfs-storage
subPath: "{NFS_SUBPATH}"
mountPath: /var/www/html
resources:
limits:
memory: "128Mi"
cpu: "200m"
requests:
memory: "128Mi"
cpu: "200m"
securityContext:
runAsUser: 0
runAsGroup: 0
volumes:
- name: nfs-storage
persistentVolumeClaim:
claimName: nfs-pvc-{APP_NAME}-test
---
apiVersion: v1
kind: Service
metadata:
name: {APP_NAME}-service
namespace: test
spec:
selector:
app: {APP_NAME}
ports:
- protocol: TCP
port: 80
targetPort: 80
type: ClusterIP
2. Jenkins Pipeline 流水线部分
1. 通过PV/PVC挂载NFS的方式
pipeline {
agent { label 'jnlp-slave' }
parameters {
choice(
name: 'DEPLOY_ACTION',
choices: ['Deploy', 'Rollback'],
description: 'Choose action type: Deploy or Rollback'
)
string(
name: 'ROLLBACK_TO_BUILD',
defaultValue: '',
description: 'Enter build number to rollback (e.g. 15), leave empty to rollback to last successful version'
)
}
environment {
DEPLOY_REPO_SSH = 'git@gitlab.dbblive.com:kubernetes/yyh-devops.git'
}
stages {
stage('Initialize Variables') {
steps {
script {
env.APP_NAME = env.JOB_BASE_NAME
echo "Detected APP_NAME from Job Name: ${APP_NAME}"
env.NFS_ROOT = "/opt/nfs/${APP_NAME}-test"
env.CURRENT_BUILD_DIR = "${NFS_ROOT}/${BUILD_NUMBER}"
env.LAST_SUCCESS_FILE = "${NFS_ROOT}/LAST_SUCCESS"
env.BASE_DIR = "${NFS_ROOT}/base"
}
}
}
stage('Prepare Code for Deployment') {
when {
expression { params.DEPLOY_ACTION == 'Deploy' }
}
steps {
script {
def sourceDir = "${WORKSPACE}"
sh """
mkdir -p ${CURRENT_BUILD_DIR}
rsync -arvP ${sourceDir}/ ${CURRENT_BUILD_DIR}/|| true
chmod -R u+rw ${CURRENT_BUILD_DIR}
"""
dir("${CURRENT_BUILD_DIR}") {
sh '''
cd "${CURRENT_BUILD_DIR}"
git config --global core.sshCommand "ssh -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null"
git pull|| echo "Git pull skipped (maybe not a repo)"
'''
}
}
}
}
stage('Handle Rollback') {
when { expression { params.DEPLOY_ACTION == 'Rollback' } }
steps {
script {
def targetBuild = params.ROLLBACK_TO_BUILD?.trim()
if (!targetBuild) {
def lastSuccessFile = "${NFS_ROOT}/LAST_SUCCESS"
if (fileExists(lastSuccessFile)) {
targetBuild = readFile(lastSuccessFile).trim()
echo "No build number provided. Reading last successful build from ${lastSuccessFile}: ${targetBuild}"
} else {
error("ROLLBACK_TO_BUILD is empty and LAST_SUCCESS file not found at ${lastSuccessFile}. Cannot determine rollback target.")
}
}
echo "Rolling back to build: ${targetBuild}"
env.TARGET_BUILD = targetBuild
}
}
}
stage('Checkout Deployment Templates') {
steps {
script {
echo "Cleaning workspace and cloning deployment repo via SSH"
deleteDir()
}
sh '''
git config --global core.sshCommand "ssh -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null"
REPO_DIR="yyh-devops-repo"
REPO_URL="${DEPLOY_REPO_SSH}"
echo "Cloning from ${REPO_URL} into ${REPO_DIR}"
git clone "${REPO_URL}" "${REPO_DIR}"
INPUT_PATH="${REPO_DIR}/dbbjt/php/${APP_NAME}/k8s-deployment.yaml"
if [ ! -f "$INPUT_PATH" ]; then
echo "❌ Error: k8s-deployment.yaml not found at $INPUT_PATH"
find "${REPO_DIR}" -type f
exit 1
fi
echo "✅ Template repository cloned successfully"
'''
}
}
stage('Render and Apply Kubernetes Manifest') {
steps {
script {
env.NFS_SUBPATH = (params.DEPLOY_ACTION == 'Deploy') ? env.BUILD_NUMBER : env.TARGET_BUILD
echo "🎯 Final Variables:"
echo " APP_NAME = ${APP_NAME}"
echo " BUILD_NUMBER = ${BUILD_NUMBER}"
echo " NFS_SUBPATH = ${NFS_SUBPATH}"
echo " Action = ${params.DEPLOY_ACTION}"
}
sh '''
set -e
set -u
INPUT="yyh-devops-repo/dbbjt/php/${APP_NAME}/k8s-deployment.yaml"
OUTPUT="${WORKSPACE}/rendered.yaml"
if [ ! -f "$INPUT" ]; then
echo "❌ Template not found at $INPUT"
exit 1
fi
cp "$INPUT" "$OUTPUT"
sed -i "s|{APP_NAME}|${APP_NAME}|g" "$OUTPUT"
sed -i "s|{NFS_SUBPATH}|${NFS_SUBPATH}|g" "$OUTPUT"
echo "=== 🔍 Rendered Manifest ==="
cat "$OUTPUT"
echo "=== 🚀 Applying to Kubernetes ==="
kubectl apply -f "$OUTPUT"
'''
}
}
stage('Update Success Marker') {
when {
expression { currentBuild.result == null || currentBuild.result == 'SUCCESS' }
}
steps {
script {
def finalVersion = (params.DEPLOY_ACTION == 'Deploy') ? env.BUILD_NUMBER : (params.ROLLBACK_TO_BUILD ?: env.TARGET_BUILD)
sh "echo ${finalVersion} > ${LAST_SUCCESS_FILE}"
echo "Action succeeded. Updated LAST_SUCCESS=${finalVersion}"
}
}
failure {
echo "Action failed. LAST_SUCCESS was not updated."
}
always {
deleteDir()
}
}
}
}
2. 登录NFS服务器去拷贝的方式
agent { label 'jnlp-slave' }
parameters {
choice(
name: 'DEPLOY_ACTION',
choices: ['Deploy', 'Rollback'],
description: 'Choose action type: Deploy or Rollback'
)
string(
name: 'ROLLBACK_TO_BUILD',
defaultValue: '',
description: 'Enter build number to rollback (e.g. 15), leave empty to rollback to last successful version'
)
}
environment {
DEPLOY_REPO_SSH = 'git@gitlab.dbblive.com:kubernetes/yyh-devops.git'
}
stages {
stage('Initialize Variables') {
steps {
script {
env.APP_NAME = env.JOB_BASE_NAME
echo "Detected APP_NAME from Job Name: ${APP_NAME}"
env.NFS_ROOT = "/opt/nfs/${APP_NAME}-test"
env.CURRENT_BUILD_DIR = "${NFS_ROOT}/${BUILD_NUMBER}"
env.LAST_SUCCESS_FILE = "${NFS_ROOT}/LAST_SUCCESS"
env.BASE_DIR = "${NFS_ROOT}/base"
}
}
}
stage('Prepare Code for Deployment') {
when {
expression { params.DEPLOY_ACTION == 'Deploy' }
}
steps {
script {
def sourceDir = "${WORKSPACE}"
sh """
mkdir -p ${CURRENT_BUILD_DIR}
rsync -arvP ${sourceDir}/ ${CURRENT_BUILD_DIR}/|| true
chmod -R u+rw ${CURRENT_BUILD_DIR}
"""
dir("${CURRENT_BUILD_DIR}") {
sh '''
cd "${CURRENT_BUILD_DIR}"
git config --global core.sshCommand "ssh -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null"
git pull|| echo "Git pull skipped (maybe not a repo)"
'''
}
}
}
}
stage('Handle Rollback') {
when { expression { params.DEPLOY_ACTION == 'Rollback' } }
steps {
script {
def targetBuild = params.ROLLBACK_TO_BUILD?.trim()
if (!targetBuild) {
def lastSuccessFile = "${NFS_ROOT}/LAST_SUCCESS"
if (fileExists(lastSuccessFile)) {
targetBuild = readFile(lastSuccessFile).trim()
echo "No build number provided. Reading last successful build from ${lastSuccessFile}: ${targetBuild}"
} else {
error("ROLLBACK_TO_BUILD is empty and LAST_SUCCESS file not found at ${lastSuccessFile}. Cannot determine rollback target.")
}
}
echo "Rolling back to build: ${targetBuild}"
env.TARGET_BUILD = targetBuild
}
}
}
stage('Checkout Deployment Templates') {
steps {
script {
echo "Cleaning workspace and cloning deployment repo via SSH"
deleteDir()
}
sh '''
git config --global core.sshCommand "ssh -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null"
REPO_DIR="yyh-devops-repo"
REPO_URL="${DEPLOY_REPO_SSH}"
echo "Cloning from ${REPO_URL} into ${REPO_DIR}"
git clone "${REPO_URL}" "${REPO_DIR}"
INPUT_PATH="${REPO_DIR}/dbbjt/php/${APP_NAME}/k8s-deployment.yaml"
if [ ! -f "$INPUT_PATH" ]; then
echo "Template not found at $INPUT_PATH"
exit 1
fi
cp "$INPUT_PATH" "$OUTPUT"
sed -i "s|{APP_NAME}|${APP_NAME}|g" "$OUTPUT"
sed -i "s|{NFS_SUBPATH}|${NFS_SUBPATH}|g" "$OUTPUT"
echo "Rendered Manifest"
cat "$OUTPUT"
echo "Applying to Kubernetes"
kubectl apply -f "$OUTPUT"
'''
}
}
post {
success {
script {
def finalVersion = (params.DEPLOY_ACTION == 'Deploy') ? env.BUILD_NUMBER : (params.ROLLBACK_TO_BUILD ?: env.TARGET_BUILD)
sh "echo ${finalVersion} > ${LAST_SUCCESS_FILE}"
echo "Action succeeded. Updated LAST_SUCCESS=${finalVersion}"
}
}
failure {
echo "Action failed. LAST_SUCCESS was not updated."
}
always {
deleteDir()
}
}
}
第四步：最基础镜像制作
Bash
拉取基础镜像
root@bocheng-System-Product-Name:~# docker pull ubuntu:22.04
创建docker容器进入制作基础镜像
root@bocheng-System-Product-Name:~# docker run -itd --name base ubuntu:22.04 bash
root@bocheng-System-Product-Name:~# docker exec -it base bash
容器内操作
root@d3788c4ad31e:~# php -v
PHP 8.0.x (fpm-fcgi) (built: ...)
Copyright (c) The PHP Group
Zend Engine v4.0.0, Copyright (c) Zend Technologies
with Zend OPcache v8.0.0, Copyright (c), by Zend Technologies
root@d3788c4ad31e:~# composer -V
Composer version 2.0.14 2021-01-06 11:12:37
root@d3788c4ad31e:~# echo "设置时区与PHP默认内存限制"
DEBIAN_FRONTEND=noninteractive TZ=Asia/Shanghai PHP_MEMORY_LIMIT=256M UPLOAD_MAX_FILESIZE=50M POST_MAX_SIZE=100M
root@d3788c4ad31e:~# sed -i 's|http://archive.ubuntu.com/ubuntu/|http://mirrors.aliyun.com/ubuntu/|g' /etc/apt/sources.list && \
sed -i 's|http://security.ubuntu.com/ubuntu/|http://mirrors.aliyun.com/ubuntu/|g' /etc/apt/sources.list
root@d3788c4ad31e:~# apt-get update && \
apt-get install -y software-properties-common && \
add-apt-repository ppa:ondrej/php -y && \
apt-get update
root@d3788c4ad31e:~# apt-get install -y \
php8.0-fpm \
php8.0-cli \
php8.0-common \
php8.0-curl \
php8.0-mbstring \
php8.0-xml \
php8.0-dom \
php8.0-zip \
php8.0-pdo \
php8.0-mysql \
php8.0-redis \
php8.0-bcmath \
php8.0-gd \
php8.0-opcache \
php8.0-intl \
php8.0-tokenizer \
php8.0-json \
php8.0-fileinfo
root@d3788c4ad31e:~# sed -i 's/memory_limit = .*/memory_limit = 256M/' /etc/php/8.0/fpm/php.ini && \
sed -i 's/upload_max_filesize = .*/upload_max_filesize = 50M/' /etc/php/8.0/fpm/php.ini && \
sed -i 's/post_max_size = .*/post_max_size = 100M/' /etc/php/8.0/fpm/php.ini && \
sed -i 's/;date.timezone.*/date.timezone = Asia\/Shanghai/' /etc/php/8.0/fpm/php.ini
root@d3788c4ad31e:~# echo "启用OPcache优化"
echo "opcache.enable=1" >> /etc/php/8.0/fpm/conf.d/10-opcache.ini && \
echo "opcache.enable_cli=1" >> /etc/php/8.0/fpm/conf.d/10-opcache.ini && \
echo "opcache.memory_consumption=256" >> /etc/php/8.0/fpm/conf.d/10-opcache.ini && \
echo "opcache.max_accelerated_files=20000" >> /etc/php/8.0/fpm/conf.d/10-opcache.ini && \
echo "opcache.validate_timestamps=0" >> /etc/php/8.0/fpm/conf.d/10-opcache.ini
root@d3788c4ad31e:~# sed -i 's/listen = .*/listen = 127.0.0.1:9000/' /etc/php/8.0/fpm/pool.d/www.conf && \
sed -i 's/;listen.owner/listen.owner/' /etc/php/8.0/fpm/pool.d/www.conf && \
sed -i 's/;listen.group/listen.group/' /etc/php/8.0/fpm/pool.d/www.conf && \
sed -i 's/;listen.mode/listen.mode/' /etc/php/8.0/fpm/pool.d/www.conf
root@d3788c4ad31e:~# curl -sS https://getcomposer.org/installer | php8.0 -- --version=2.0.14 --install-dir=/usr/local/bin --filename=composer
root@d3788c4ad31e:~# composer config -g repo.packagist composer https://mirrors.aliyun.com/composer/
root@d3788c4ad31e:~# composer -V
Composer version 2.0.14 2021-01-06 11:12:37
root@d3788c4ad31e:~# php -m | grep -i json
json
root@d3788c4ad31e:~# php -m | grep -i redis
redis
root@d3788c4ad31e:~# nginx -v
nginx version: nginx/1.18.0 (Ubuntu)
root@d3788c4ad31e:~# apt-get install -y nginx supervisor vim git unzip
root@d3788c4ad31e:~# apt-get clean && rm -rf /var/lib/apt/lists/* /tmp/* /var/tmp/*
提交为自定义镜像
root@bocheng-System-Product-Name:~# docker commit base swr.cn-east-3.myhuaweicloud.com/bocheng-test/ubuntu22.04:v1
第五步：服务基础镜像制作
nginx镜像制作
Plain Text
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/dockerfiles/nginx# tree -L 1
.
├── action.sh
├── Dockerfile
├── laravel.conf
└── nginx.conf
0 directories, 4 files
Bash
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/dockerfiles/nginx# cat nginx.conf
user root;
worker_processes auto;
error_log /var/log/nginx/error.log warn;
worker_rlimit_nofile 51200;
events {
use epoll;
worker_connections 51200;
multi_accept on;
}
http {
include /etc/nginx/mime.types;
default_type application/octet-stream;
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for" '
'rt=$request_time uct="$upstream_connect_time" uht="$upstream_header_time" urt="$upstream_response_time"';
access_log off;
log_not_found off;
log_subrequest off;
client_body_temp_path /tmp/client_body;
proxy_temp_path /tmp/proxy_temp;
fastcgi_temp_path /tmp/fastcgi_temp;
uwsgi_temp_path /tmp/uwsgi_temp;
scgi_temp_path /tmp/scgi_temp;
sendfile on;
tcp_nopush on;
tcp_nodelay on;
keepalive_timeout 65;
keepalive_requests 100;
types_hash_max_size 2048;
client_max_body_size 50m;
client_header_buffer_size 16k;
large_client_header_buffers 4 32k;
gzip on;
gzip_min_length 1k;
gzip_buffers 4 16k;
gzip_http_version 1.1;
gzip_comp_level 2;
gzip_types
text/plain
text/css
text/xml
text/javascript
application/javascript
application/x-javascript
application/xml
application/json
image/svg+xml;
gzip_vary on;
gzip_proxied expired no-cache no-store private auth;
gzip_disable "MSIE [1-6]\.";
fastcgi_connect_timeout 300;
fastcgi_send_timeout 300;
fastcgi_read_timeout 300;
fastcgi_buffer_size 64k;
fastcgi_buffers 4 64k;
fastcgi_busy_buffers_size 128k;
fastcgi_temp_file_write_size 256k;
fastcgi_intercept_errors on;
limit_conn_zone $binary_remote_addr zone=perip:10m;
limit_conn_zone $server_name zone=perserver:10m;
server_tokens off;
include /etc/nginx/conf.d/*.conf;
include /etc/nginx/sites-enabled/*;
}
Bash
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/dockerfiles/nginx# cat laravel.conf
# /etc/nginx/conf.d/default.conf
server {
listen 80;
root /var/www/html/public;
index index.php index.html;
# 错误日志写入文件（便于排查）
error_log /var/log/nginx/laravel_error.log warn;
access_log off;
location / {
try_files $uri $uri/ /index.php?$query_string;
}
location ~ \.php$ {
fastcgi_pass 127.0.0.1:9000;
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
include fastcgi_params;
# 安全头
fastcgi_param HTTPS off;
}
# 安全头
add_header X-Frame-Options "SAMEORIGIN" always;
add_header X-Content-Type-Options "nosniff" always;
add_header X-Permitted-Cross-Domain-Policies "none" always;
add_header Referrer-Policy "no-referrer" always;
add_header Content-Security-Policy "default-src 'self'; frame-ancestors 'self';" always;
# 禁止访问 .htaccess
location ~ /\.ht {
deny all;
}
location = /health {
try_files /health.php =200;
}
#禁止访问的文件或目录
location ~ ^/(\.user.ini|\.htaccess|\.git|\.env|\.svn|\.project|LICENSE|README.md)
{
return 404;
}
#一键申请SSL证书验证目录相关设置
location ~ \.well-known{
allow all;
}
#禁止在证书验证目录放入敏感文件
if ( $uri ~ "^/\.well-known/.*\.(php|jsp|py|js|css|lua|ts|go|zip|tar\.gz|rar|7z|sql|bak)$" ) {
return 403;
}
location ~ .*\.(gif|jpg|jpeg|png|bmp|swf)$
{
expires 30d;
error_log /dev/null;
access_log /dev/null;
}
location ~ .*\.(js|css)?$
{
expires 12h;
error_log /dev/null;
access_log /dev/null;
}
# 如果你不用 Let's Encrypt，可删除
# location ~ /\.well-known/acme-challenge {
# allow all;
# }
}
Bash
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/dockerfiles/nginx# cat Dockerfile
FROM swr.cn-east-3.myhuaweicloud.com/bocheng-test/ubuntu22.04:v1 AS nginx
ENV DEBIAN_FRONTEND=noninteractive
RUN apt-get update && \
apt-get install -y nginx && \
rm -rf /var/lib/apt/lists/* && \
mkdir -p /var/log/nginx && \
touch /var/log/nginx/access.log /var/log/nginx/error.log
# 删除默认站点
RUN rm -f /etc/nginx/sites-enabled/default
# 复制配置
COPY nginx.conf /etc/nginx/nginx.conf
COPY laravel.conf /etc/nginx/conf.d/laravel.conf
WORKDIR /var/www/html
EXPOSE 80
# 使用全路径更安全
CMD ["/usr/sbin/nginx", "-g", "daemon off;"]
Plain Text
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/dockerfiles/nginx# cat action.sh
#!/bin/bash
docker build -f Dockerfile -t swr.cn-east-3.myhuaweicloud.com/bocheng-test/nginx-laravel:base_v2 .
docker push swr.cn-east-3.myhuaweicloud.com/bocheng-test/nginx-laravel:base_v2
php-fpm镜像制作
Plain Text
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/dockerfiles/php-fpm# tree -L 3
.
├── action.sh
├── Dockerfile
├── php-fpm
│ ├── php-fpm.conf
│ └── pool.d
│ └── www.conf
├── php-fpm.conf
├── php.ini
└── pool.d
└── www.conf
Bash
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/dockerfiles/php-fpm# cat php-fpm/php-fpm.conf
include=/etc/php/8.0/fpm/pool.d/*.conf
[global]
pid = /run/php/php8.0-fpm.pid
error_log = /var/log/php-fpm/php8.0-fpm.log
log_level = notice
TypeScript
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/dockerfiles/php-fpm# cat php-fpm/pool.d/www.conf
[www]
listen = 0.0.0.0:9000
listen.backlog = 8192
user = www-data
group = www-data
pm = static
pm.max_children = 200
pm.start_servers = 15
pm.min_spare_servers = 15
pm.max_spare_servers = 50
pm.status_path = /phpfpm_80_status
request_terminate_timeout = 30
request_slowlog_timeout = 30
slowlog = /var/log/php-fpm/slow.log
php_admin_value[open_basedir] = /var/www/html:/tmp:/run
Java
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/dockerfiles/php-fpm# cat php.ini
[PHP]
engine = On
short_open_tag = Off
precision = 14
output_buffering = 4096
zlib.output_compression = Off
implicit_flush = Off
unserialize_callback_func =
serialize_precision = -1
disable_functions = passthru,exec,system,chroot,chgrp,chown,shell_exec,popen,pcntl_exec,ini_alter,ini_restore,dl,openlog,syslog,readlink,symlink,popepassthru,pcntl_fork,pcntl_waitpid,pcntl_wait,pcntl_wifexited,pcntl_wifstopped,pcntl_wifsignaled,pcntl_wifcontinued,pcntl_wexitstatus,pcntl_wtermsig,pcntl_wstopsig,pcntl_signal_dispatch,pcntl_get_last_error,pcntl_strerror,pcntl_sigprocmask,pcntl_sigwaitinfo,pcntl_sigtimedwait,pcntl_exec,pcntl_getpriority,pcntl_setpriority,imap_open,apache_setenv
disable_classes =
zend.enable_gc = On
zend.exception_ignore_args = On
zend.exception_string_param_max_len = 0
expose_php = Off
max_execution_time = 15
max_input_time = 30
memory_limit = 512M
error_reporting = E_ALL & ~E_DEPRECATED & ~E_STRICT & ~E_WARNING & ~E_NOTICE
display_errors = Off
display_startup_errors = Off
log_errors = On
log_errors_max_len = 1024
ignore_repeated_errors = On
ignore_repeated_source = On
report_memleaks = On
variables_order = GPCS
request_order = GP
register_argc_argv = Off
auto_globals_jit = On
post_max_size = 50M
auto_prepend_file =
auto_append_file =
default_mimetype = text/html
default_charset = UTF-8
doc_root =
user_dir =
enable_dl = Off
cgi.fix_pathinfo = 0
file_uploads = On
upload_max_filesize = 50M
max_file_uploads = 20
allow_url_fopen = On
allow_url_include = Off
default_socket_timeout = 5
[Date]
date.timezone = Asia/Shanghai
[Session]
session.save_handler = redis
session.save_path = tcp://127.0.0.1:6379?persistent=1&timeout=2
session.use_strict_mode = 1
session.use_cookies = 1
session.use_only_cookies = 1
session.name = PHPSESSID
session.auto_start = 0
session.cookie_lifetime = 0
session.cookie_path = /
session.cookie_domain =
session.cookie_httponly = 1
session.cookie_samesite = Lax
session.serialize_handler = php
session.gc_probability = 0
session.gc_divisor = 1000
session.gc_maxlifetime = 1440
session.cache_limiter = nocache
session.cache_expire = 180
session.use_trans_sid = 0
session.sid_length = 48
session.trans_sid_tags = a=href,area=href,frame=src,form=
session.sid_bits_per_character = 6
[Assertion]
zend.assertions = -1
[opcache]
opcache.enable = 1
opcache.enable_cli = 0
opcache.memory_consumption = 512
opcache.interned_strings_buffer = 64
opcache.max_accelerated_files = 80000
opcache.validate_timestamps = 0
opcache.revalidate_freq = 0
opcache.fast_shutdown = 1
opcache.save_comments = 0
opcache.load_comments = 0
opcache.jit_buffer_size = 256M
opcache.jit = 1255
[curl]
curl.cainfo = /etc/pki/tls/certs/ca-bundle.crt
[openssl]
openssl.cafile = /etc/pki/tls/certs/ca-bundle.crt
[mysqlnd]
mysqlnd.collect_statistics = Off
mysqlnd.collect_memory_statistics = Off
[PostgreSQL]
pgsql.allow_persistent = On
pgsql.auto_reset_persistent = Off
pgsql.max_persistent = -1
pgsql.max_links = -1
pgsql.ignore_notice = 0
pgsql.log_notice = 0
[bcmath]
bcmath.scale = 0
[Tidy]
tidy.clean_output = Off
[CLI Server]
cli_server.color = On
[Pdo_mysql]
pdo_mysql.default_socket =
[ffi]
ffi.enable = false
[Extension]
extension = zip.so
extension = fileinfo.so
extension = redis.so
zend_extension = /usr/lib/php/20200930/opcache.so
Bash
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/dockerfiles/php-fpm# cat Dockerfile
FROM swr.cn-east-3.myhuaweicloud.com/bocheng-test/ubuntu22.04:v1 AS php-fpm
RUN groupadd -g 82 www-data || true && \
useradd -r -u 82 -g www-data www-data || true
ENV DEBIAN_FRONTEND=noninteractive
COPY php-fpm.conf /etc/php/8.0/fpm/php-fpm.conf
COPY pool.d/www.conf /etc/php/8.0/fpm/pool.d/www.conf
COPY php.ini /etc/php/8.0/fpm/php.ini
RUN mkdir -p /run/php /var/log && \
chmod -R 755 /var/log && \
mkdir -p /var/log/php-fpm/
# 创建软链接解决命令找不到
RUN ln -sf /usr/sbin/php-fpm8.0 /usr/local/bin/php-fpm && \
ln -sf /usr/sbin/php-fpm8.0 /usr/sbin/php-fpm
WORKDIR /var/www/html
EXPOSE 9000
CMD ["php-fpm", "--nodaemonize"]
Plain Text
root@bocheng-System-Product-Name:/mnt/2025-10-10-v3/dockerfiles/php-fpm# cat action.sh
#!/bin/bash
docker build -f Dockerfile -t swr.cn-east-3.myhuaweicloud.com/bocheng-test/php-fpm-prod:base_v4 .
docker push swr.cn-east-3.myhuaweicloud.com/bocheng-test/php-fpm-prod:base_v4
码道开发者社区，聚焦华为云码道 CodeArts 代码智能体，沉淀 Agent、Skill、鸿蒙开发实战内容，供开发者查阅资料、交流技术、分享工程实践
更多推荐
3
0- 0
已为社区贡献17条内容
所有评论(0)
